Tri-Sen Turbomachinery Controls TS300

The TS300 is a self-powered, configurable digital governor designed to control an API-611, single valve, general purpose steam turbine, driving a mechanical load. Purpose-built with intuitive configuration, it's easy to set-up and simple to operate.

Overview
Hardware
Software
Specifications

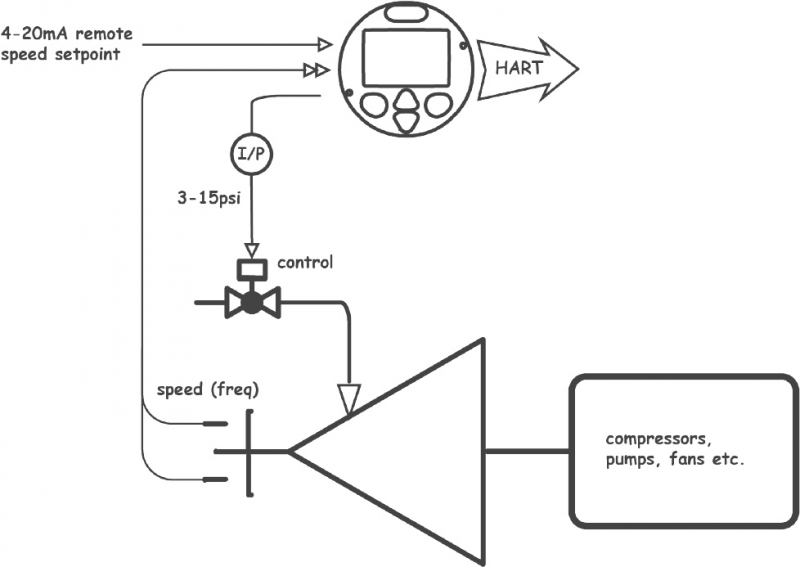

Application Overview

The TS300 self-powered digital governor is designed to control an API-611, single valve, general purpose steam turbine driving a mechanical load. For applications where 24 vdc power is not available the TS300 can be operated in self-powered mode; where the power used to run all of the TS300 electronics is generated from two speed probes. The TS300 also makes use of a back-up battery, providing power when the turbine is stopped or operating at low RPM in the self-powered configuration. The TS300 can also be used for simple turbine applications where 24vdc power is available.

FEATURES

Self-powered for remote / isolated applications
Configurable start acceleration ramp rate
Auto Start
Speed control with minimum and maximum governor speeds
USB Configuration interface
Front panel menu-driven configuration
Valve-test
Overspeed Trip / Test

The TS300 is available in application appropriate packaging, and can be delivered with an optional "manual valve lift."

Packaging

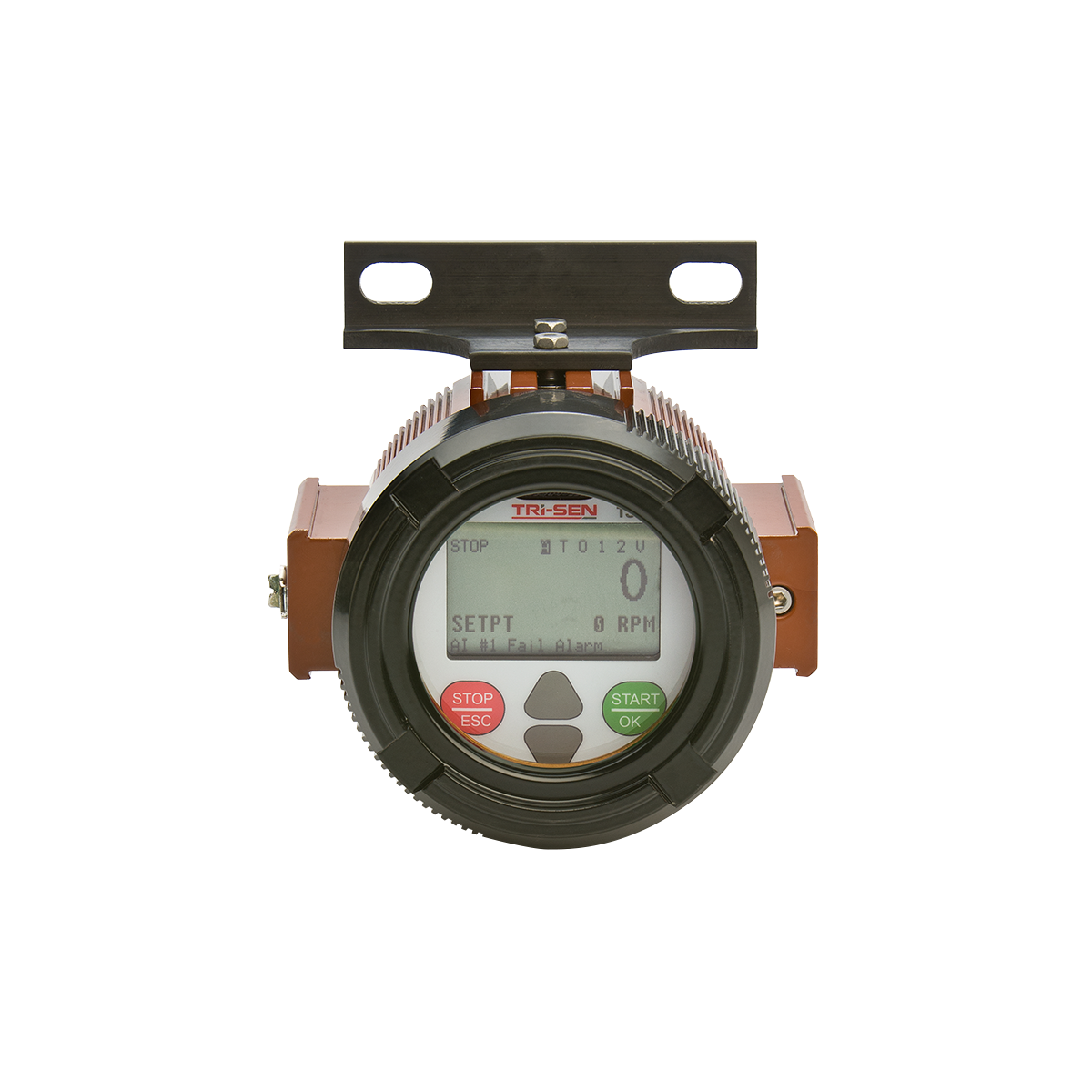

NEMA Class 1, Div 1, Explosion Proof, Aluminum "Hockey Puck" transmitter enclosure

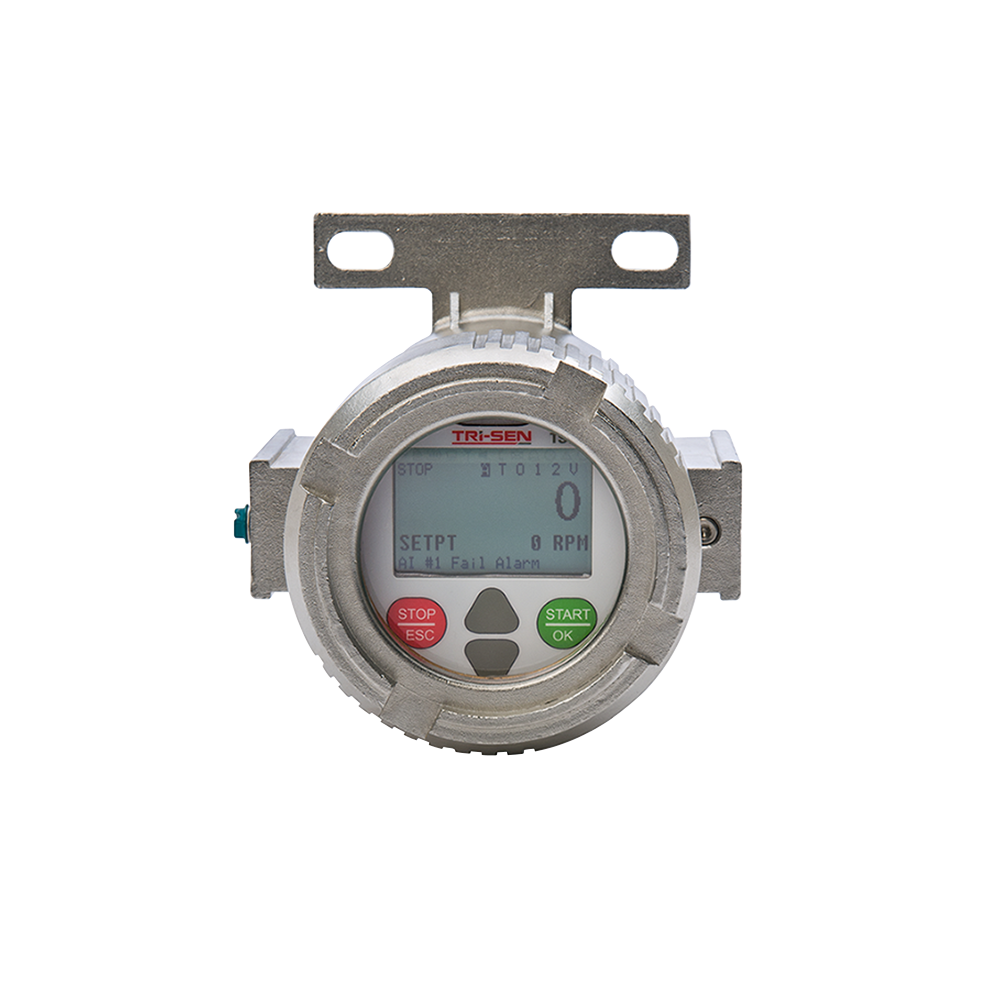

NEMA 4X Class 1, Div 1, Explosion Proof, Stainless Steel "Hockey Puck" transmitter enclosure
Painted Steel GMA-735/TS110 Replacement enclosure w/o "manual valve lift"
Painted Steel GMA-735/TS110 Replacement enclosure with optional "manual valve lift"

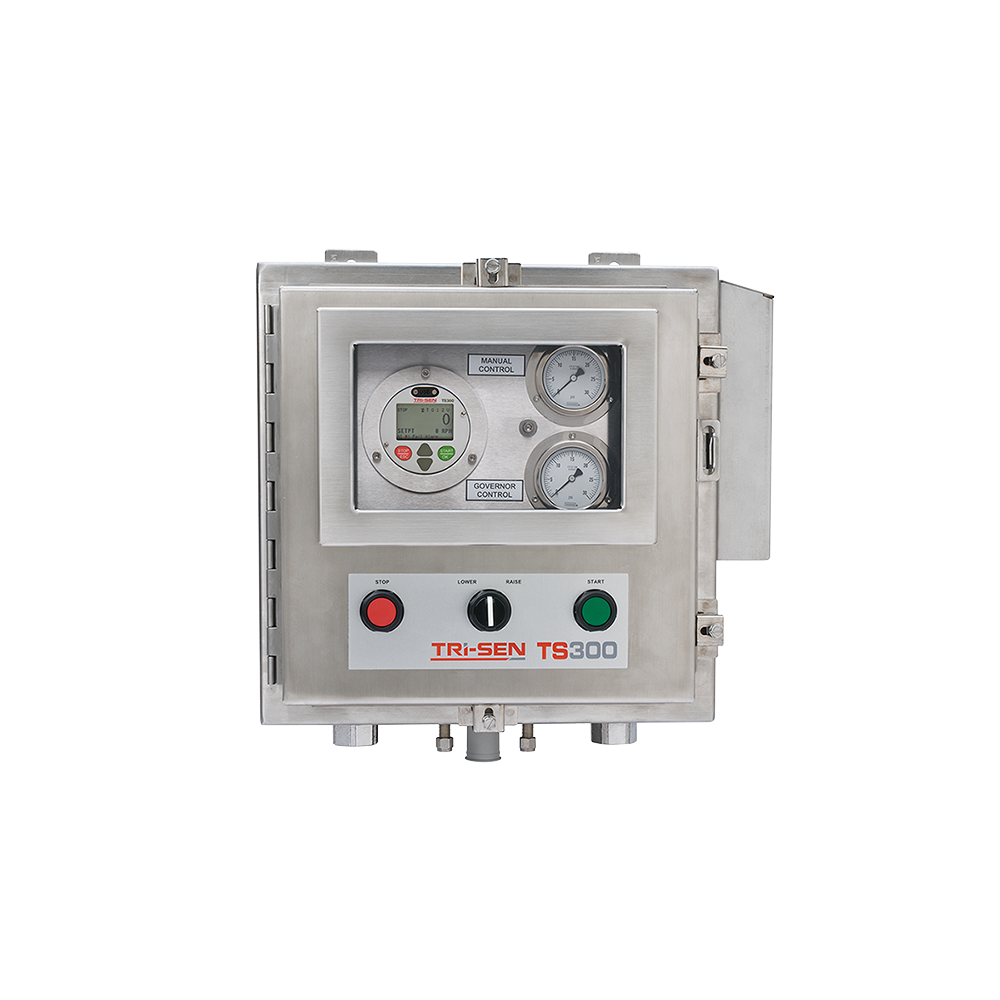

Stainless Steel GMA-735/TS110 Replacement enclosure w/o "manual valve lift"
Stainless Steel GMA-735/TS110 Replacement enclosure with optional "manual valve lift"

Input/Output

(4) configurable 24vdc digital inputs
(1) 4-20mA analog input (remote speed set point)
(2) pulse (frequency) inputs
(2) 24vdc, inherently fail-safe digital output contacts
(1) configurable analog output (1-6 mA self-powered or 420mA with external 24vdc power supply)

Simple Menu Driven Configuration

The TS300 Configurator is a Windows-based software application that allows the user to configure the controller from a PC. The Configurator makes setup easy with features like an expandable parameter view, drop down menus and checkboxes.

Integrated Help

Detailed online help minimizes the need to refer to the User’s Guide during configuration. Configurations can be easily downloaded or uploaded to or from the TS300 and a comparison feature makes it easy to identify differences between two configuration files.

Built-In Simulation

One of the most powerful features of the Configurator is the Simulate application, which allows the user to test a configuration on the PC without running the turbine or even connecting to the TS300 controller.

The user can simulate a turbine startup and confirm configured speed ranges, ramp rates and digital I/O functions without leaving the shop or the office.

Real-Time Monitoring

The TS300 Configurator allows real-time monitoring of I/O values and states, calculated values and alarm and trip history.

Selectable real-time trending and recording are also included.

Digital Inputs
Feature	Description
Inputs per controller	4, optically isolated with common return
Voltage Range	5V or 10V DC

Power Input (Optional)
Feature	Description
Power Input	18 to 30 VDC 0.5 A typical @ 24VDC

Analog Input
Feature	Description
Inputs per controller	1, differential current input
Resolution	0.1% of full scale
Accuracy	±2% over operating temperature range
Input Range	0-37.5mA max
Burden	7.1 V max. at 20mA
Common mode range	-0.1V to +12 V

Speed Measurements (Pulse-Frequency Input)
Feature	Description
Sensor (probe)	2, passive magnetic, 15ma Max (Tri-Sen 7131-0004 or equivalent)
Range	200Hz to 10kHz (200 to 10,000 RPM with 60 tooth gear)
Gear	Diametrical Pitch ≤ 8°, 20 – 180 teeth
Accuracy	±1.0RPM @ 3000RPM in an operating environment of 20°C

Digital Outputs
Feature	Description
Outputs per controller	2, isolated, normally open contact, solid state relays
Voltage Range	24 VDC
Current Range (contact)	3A

Actuator Output
Feature	Self-Powered by Magnetic Pickup	External Power at +24 VDC
Outputs per controller	1, current source, ground-referenced	1, current source, ground-referenced
Resolution	0.2% of full scale	0.1% of full scale
Output Range	0-5mA	0-20mA
Load Range	0-350 ohms @ 5mA out	0-1000 ohms @ 20mA out

AGENCY CERTIFICATION
Feature	Description
UL (file E233163)	Class 1, Divison 2, Groups A,B,C,D hazardous locations (without enclosure)
ATEX	Ex Na IIC T4 Gc ; [Certificate Number: DEMKO 13 ATEX 1202145X Rev. 0]

Dimensions

TS300 DOWNLOADS

TS300 Product Brochure
TS300 Removal Tool User's Guide
GMA 735 / TS110 Replacement Brochure
TS300 Painted Steel Field Mounting Kit Outline
